OMAX Spare Parts & Waterjet Consumables
OMAX and AccuStream waterjet parts. Hypertherm will be organized separately as plasma later.
Browse online store - OMAX and AccuStreamRequest your spare parts
We keep permanent stock of consumables and spare parts for waterjet and plasma cutting machines. Contact our technical team to identify the exact part you need.
Phone
+34 916 742 434Parts by Brand
OMAX Waterjet Spare Parts
Original OMAX parts and wear components for the full range of OMAX and MAXIEM waterjet machines.
- ✓ ROCTEC mixing tubes
- ✓ Orifices and focusing tubes
- ✓ Pump seals, valves and filters
- ✓ Calibrated garnet abrasive
- ✓ Wear parts identified by serial number
Hypertherm Powermax
Original consumables for Hypertherm plasma cutting systems. Compatible with Powermax 45, 65, 85 and 105.
- ✓ Nozzles and electrodes
- ✓ Shields and deflectors
- ✓ Tips and diffusers
- ✓ Complete consumable kits
- ✓ Mechanized and hand torches

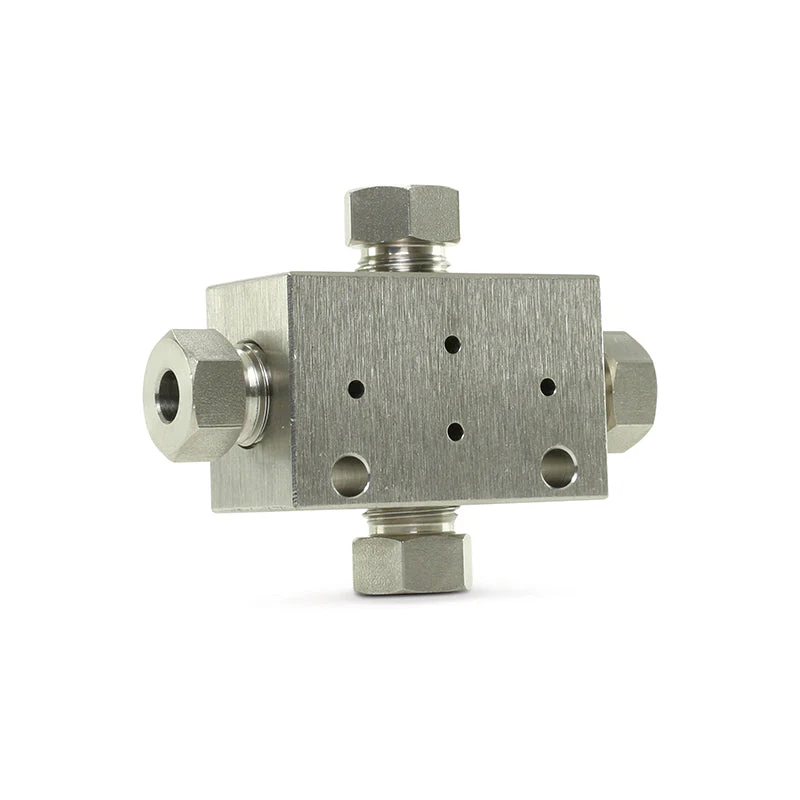

Accustream
Spare parts for Accustream high-pressure pumps. Maintenance kits and original parts.
- ✓ High-pressure seals
- ✓ Check and on/off valves
- ✓ Maintenance kits
- ✓ 60K and 90K PSI pumps
- ✓ Intensifier cylinders
Most requested mixing tubes
ROCTEC 100 and ROCTEC 500 mixing tubes are the most common consumable for OMAX, MAXIEM and Accustream machines. Manufactured in tungsten carbide with very tight internal tolerances. Below, the top-selling references in Iberia.
| Internal Ø | External Ø | Length | Application | Service life* |
|---|---|---|---|---|
| 0.76 mm | 7.14 mm | 76.2 mm | Fine cutting, high precision | 80-120 h |
| 0.76 mm | 7.14 mm | 101.6 mm | High precision, medium thickness | 100-140 h |
| 1.02 mm | 6.00 mm | 76.2 mm | Standard cutting, general use | 80-120 h |
| 1.02 mm | 7.14 mm | 76.2 mm | Standard cutting, higher durability | 100-140 h |
| 1.02 mm | 7.14 mm | 101.6 mm | Intensive production | 120-160 h |
| 0.76 mm | 8.00 mm | 76.2 mm | MAXIEM, reduced kerf | 100-140 h |
| 1.07 mm | 8.00 mm | 101.6 mm | Fast roughing, thick plate | 120-160 h |
| 1.09 mm | 9.47 mm | 79.4 mm | High-power pumps 60 HP+ | 140-180 h |
* Estimated service life with 80 mesh garnet, 0.5 µm filtered water and stable 60,000 psi pressure. Send us your machine serial number to confirm the exact reference.
Orifices: ruby, sapphire and diamond
The orifice is the critical part that generates the high-pressure jet. Material choice directly impacts cost per hour, precision and maintenance cycle.
| Material | Usual diameters | Service life | Relative cost | Best for |
|---|---|---|---|---|
| Ruby | 0.010 / 0.012 / 0.014" | 40-80 h | 1× | General use, mid-size shops |
| Sapphire | 0.010 / 0.012 / 0.014" | 80-120 h | 1.3-1.5× | Precision, fewer changes |
| Diamond | 0.010 / 0.013 / 0.015" | 800-1,500 h | 15-20× | 24/7 production, minimum cost/h |

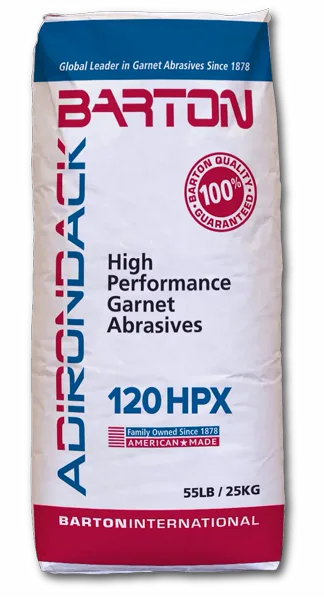

Abrasive garnet: mesh sizes and consumption
Almandine garnet is the standard abrasive for waterjet cutting. Lucohe delivers calibrated garnet in 25 kg bags and 1,000 kg big-bags with 48-72 h delivery in Iberia and 5-7 days in Balearics, Canary Islands, Madeira and Azores.
| Mesh size | Typical application | Relative speed | Surface (Ra) | Consumption (30 HP) |
|---|---|---|---|---|
| 80 mesh (180-200 µm) | General use, 80% of cuts | 100% | 5-8 µm | 0.45-0.55 kg/min |
| 120 mesh (105-125 µm) | High precision, fine edges | 75-80% | 3-5 µm | 0.40-0.50 kg/min |
| 50 mesh (250-300 µm) | Roughing, plate >60 mm | 110-120% | 8-12 µm | 0.55-0.68 kg/min |
Consumption figures indicative at 30 HP pump. For 50 HP multiply by ~1.3. For 100 HP multiply by 2.
How to identify your part
Serial number
Locate your machine's serial number (metal plate on the side of pump or controller). With that we confirm revision and exact compatibility.
OMAX / Hypertherm part number
If you know the reference (1-XXXXX format on OMAX, 220XXX on Hypertherm), send it by email. We'll quote in hours.
Photo of the part
No reference? A photo of the original part (with a ruler for scale) is enough for our technicians to identify it. We know the catalog inside out.
Waterjet spare parts FAQ
When should I replace the mixing tube on my OMAX waterjet? +
Replace the mixing tube when the internal diameter erodes more than 0.05-0.08 mm beyond the original spec (typically every 80-120 hours with 80 mesh garnet). Practical signs: the jet starts to spread (loses focus), kerf width exceeds 1 mm, or cut edges show more taper than usual. Always measure with a plug-gauge before discarding — many shops throw out tubes that still have life in them.
What is the difference between a ruby, sapphire and diamond orifice? +
Ruby: 40-80 h service life, low cost, great quality/price ratio for general cutting. Sapphire: 80-120 h, better jet geometry consistency. Diamond: 800-1,500 h, 15-20× higher upfront cost but the lowest cost per hour for 24/7 intensive production. OMAX standard diameters are 0.010-0.015 inches.
Should I use 80 mesh or 120 mesh garnet? +
80 mesh: most common (~80% of cuts). Balanced speed and surface finish. Typical consumption 0.45-0.68 kg/min depending on pump power. 120 mesh: fine, high-precision cuts with smoother edges (Ra 3-5 µm), but ~20% slower. For thick plate (>40 mm) or roughing, 80 mesh is more efficient.
How much garnet does a waterjet consume per year? +
Depends on effective cutting hours and pump power. Reference: a shop with 1,500 h/year and a 30 HP pump consumes ~15-18 tonnes/year (80 mesh). Intensive production 4,000 h/year with 50 HP: 45-55 tonnes/year. Lucohe ships garnet in 25 kg bags and 1,000 kg big-bags with 48-72 h delivery in Iberia.
Are Hypertherm Powermax consumables cross-compatible between models? +
Partially. Hypertherm splits consumables by series: Powermax45 XP uses different nozzle/electrode than Powermax65/85/105 (which share a family). Shields, deflectors and swirl rings are usually model-specific. When ordering, always specify exact model (Powermax45 XP, Powermax65 SYNC, etc.) and working amperage — optimum consumables vary between 30 A and 125 A.
Which high-pressure seals does an OMAX 60,000 psi pump need? +
OMAX EnduroMAX direct-drive pumps use a seal kit with one dynamic seal (hard seal) plus a secondary seal (soft seal) per cylinder. Typical life: 500-800 h with treated water (hardness <50 ppm, filtered to 0.5 µm). Late maintenance can damage the plunger (10× pricier than the seal kit), so preventive replacement at 500 h is recommended.
Can I use generic Chinese consumables on an OMAX machine? +
Technically yes, but not recommended. Original OMAX ROCTEC 100 mixing tubes hold ±0.005 mm internal diameter tolerance; generics run at ±0.03-0.05 mm, which degrades cut precision and doubles garnet consumption. Incorrect alloy also damages the mixing chamber by vibration. On cost-per-hour, originals usually win.
Does Lucohe ship spare parts to Portugal? +
Yes. We ship parts and consumables across mainland Portugal with 48-72 h delivery from order confirmation. We also service Madeira and Azores (5-7 business days). Intra-EU VAT invoicing where applicable. Direct contact: repuestos@lucohe.com.
Technical support and advice
As the official OMAX distributor in the Iberian Peninsula, our specialized technical team can identify the exact part number you need. If you're not sure which part to replace, our technicians will guide you using your machine's serial number.
